Electric straw bale yoke

HOME / MAIN BUSINESSES/ SPECIAL SPREADERS

Electric straw bale yoke

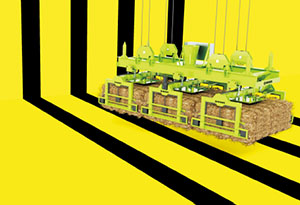

GBCRANES electric straw bale yoke adopts the most advanced technology,which can handle multiple straw bale at the same time, up to 12 (can complete the loading and unloading of a complete truck at once, including the front and trailer), significantly improving the efficiency of straw bale loading and unloading. Our electric straw bale yoke can handle straw bales of various sizes, suitable for semiautomatic and fully automatic cranes. The professional product consulting team of GBCRANES will provide you with customized solutions to meet your material handling needs.

YOUR CONTACT

GBCRANES

0086-157 3711 5726

inquiry@gbcranes.com

Online Consultation

Features

High quality
Continuous operation
Minimal maintenance requirements

Application

Energy sector
Processing biomass
Straw and similar materials

Options

Anti-tilt sensor
Humidity detector

Communication options

RS232C
RS485
Ethernet
Wifi
Profibus
Analog output
Output via radio

Weighing options

Total weight
Total weight search
Total weight erase

TECHNICAL DATA SHEET

Max. Opening Width	3230mm	3230mm	3230mm	3230mm
Min. Opening Width	2030mm	2030mm	2030mm	2030mm
Humidity Measuring Range	1%-35%	1%-35%	1%-35%	1%-35%
Motor Power	7.5KW*2	7.5KW*3	7.5KW*6	7.5KW*6
Opening and Closing Time	18s	18s	18s	18s
Max. Lifting Speed	1m/s	1m/s	1m/s	1m/s
Recommended Wire Rope Diameter	15-19mm	15-19mm	15-19mm	15-19mm
Regulating Motor	/	/	/	0.37KW*4

Interested? Please, contact us.
We respond fast and are ready to help you.

CONTSCT US

PARTS AND SERVICES

We are the equipment manufacturing factory of CLESCRANE. Our services are completed in cooperation with CLESCRANE. As a factory, our most responsible behavior to customers is to strictly follow the process requirements for equipment processing, assembly, testing and quality control. Our CLESCRANE can provide a complete maintenance manual. We can ensure a stable supply of spare parts. Manufacturing is our strength. Please feel free to choose GBCRANES products.
