LED Flood Light, LED Anti-seismic Floodlights

HOME / MAIN BUSINESSES/ Crane Kits

LED Bay

LED anti-seismic floodlights are currently used as standard components of GBCRANES double-girder overhead gantry cranes. If you use single-girder products, no matter whether the equipment is used indoors or outdoors, you can check this option when filling out the product questionnaire. In the solution, we will provide you the design. We chose the Ocean King brand with the best quality in China market. Usually, an anti-seismic floodlight is installed at a distance of 5-6 meters. Depending on the lifting height, the wattage selection of the lamp is slightly different. The high protection level and more stable quality allow you to use it with confidence. The quality allows you to use it with confidence. If you want to know more, please contact the product and solution consultant.

YOUR CONTACT

GBCRANES

0086-157 3711 5726

inquiry@gbcranes.com

Online Consultation

Construction

● Casting thermally conducts LED heat to optimize performance and long life.
● With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment.

Optics

● Light engines are available in standard 3000K, 4000K, 5000K( 80 CRI) configurations.
● Scalable Lumen Packages from 6,300 to 17,100 Lumens.
● Anti-UV prismatic translucent len is designed to shape the light uniformity and controls the glare light.

Electrical

● Universal 120V or 230V/240VAC input voltage.
● PF >90%, THD <20%.
● Operating Temperature Range: -40°C to 40°C (-40˚F - + 104˚F).

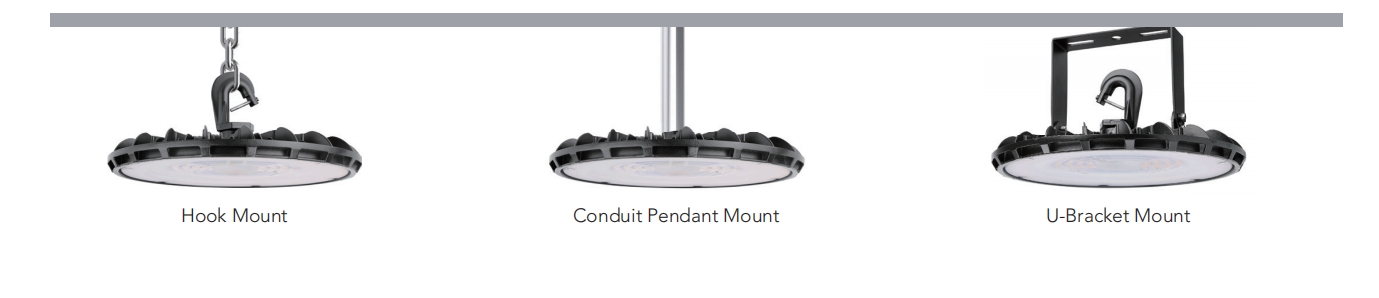

Mounting

● Hook Mount.
● Conduit Pendant Mount.
● U-Bracket Mount.

Certifications

UL cUL wet location listed.

Note

Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C) specifications subject to change without notice.

Accessories (Optional)

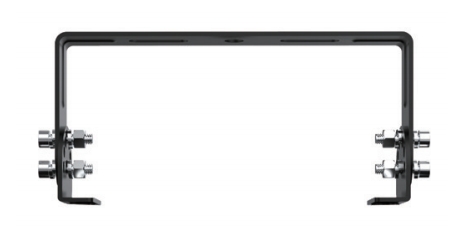

U-Bracket

U-Bracket
Use for surface mount

Performance Data

SYSTEM WATTS	PHOTOMETRY	3000K (80CRI)		4000K (80CRI)		5000K (80CRI)
SYSTEM WATTS	PHOTOMETRY	LUMENS	LPW	LUMENS	LPW	LUMENS	LPW
60W	High Bay	6300lm	105 lm/W	6400lm	107 lm/W	6400lm	107 lm/W
80W	High Bay	8400lm	105 lm/W	8500lm	106 lm/W	8500lm	106 lm/W
100W	High Bay	10500lm	105 lm/W	11000lm	110 lm/W	11000lm	110 lm/W
120W	High Bay	12600lm	105 lm/W	13000lm	108 lm/W	13000lm	108 lm/W
155W	High Bay	16300lm	105 lm/W	17400lm	112 lm/W	17400lm	112 lm/W

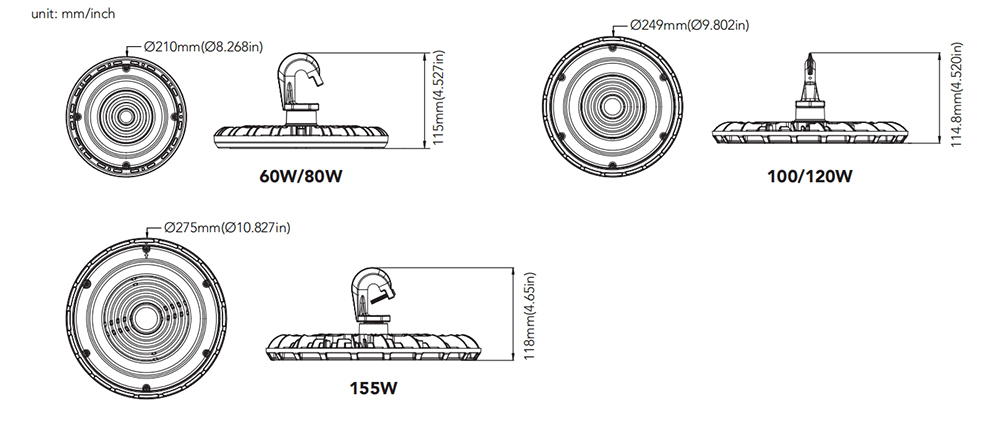

Dimension

Mounting

Warranty Period

Warranty Period: 1 Year
